MIB Table

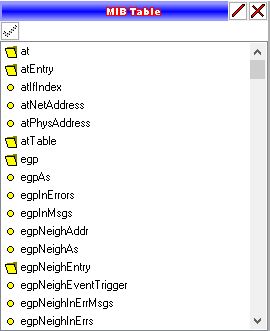

The MIB Table panel displays SNMP MIBS, or Simple Network Management Protocol Managed Information Blocks, in an alphabetical list ordered by each MIBs name. The panel has a single toggle control, and selecting / highlighting MIBs in the list may be used as selection control for various other panels such as the SNMP Fetch and MIB Reference panels.

The MIB Tree and MIB Table serve similar functions, each with their own strengths. Use the MIB Tree to locate a MIB by it's hierarchical assignment without having to know it's name. Use the MIB Table to most easily find a MIB by name without having to know it's hierarchical position.

MIB Table controls

• Check/UnCheck
  The only control on the MIB Table is a "Check/UnCheck" control to select the action when clicking on a MIB. Clicking the control toggles the control between Check and UnCheck.

MIB Table Entries

The MIB Table entries themselves serve as selection control to other panels. Clicking a MIB in the MIB Table selects that MIB for the MIB Reference Panel.

• If the Check/UnCheck control is set to Check, then the MIB is Checked and added to the SNMP Fetch Panel.
• If the Check/UnCheck control is set to UnCheck, then the 1st instance of the MIB is removeded from the SNMP Fetch Panel. If no instances of the MIB remain in the SNMP Fetch Panel, then the MIB is UnChecked on the MIB Table Panel.

All "checked" markes can be cleared at once using the "clear" control on the SNMP Fetch Panel.
