MIB Alternative 1 for Entering Roots

MIB roots can be defined relative to parent roots either contained or added to a MIB definition file. The example depicts the 802dot11 MIB defined relative to parents US, member, and fundamental base iso root "1".

iso	       OBJECT IDENTIFIER ::= { 1 }
member	       OBJECT IDENTIFIER ::= { iso 2 }
US	       OBJECT IDENTIFIER ::= { member 840 }

    ieee802dot11 MODULE-IDENTITY
	.
	.
	.
    ::= { US 10036 }

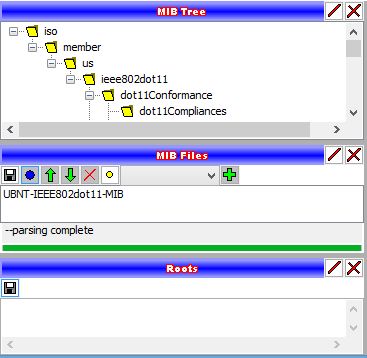

When defined relative to a parent root, all the parents are visually present in the tree.
